IAG fiber module not showing the red light dot after plugged in

Posted
Updated
Byadmin
Views7

Issue Description

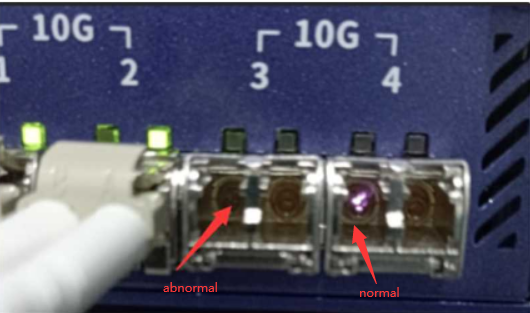

IAG fiber module not showing the red light dot after plugged in.

file

Handling Process
-Changed another fiber module also same issue.

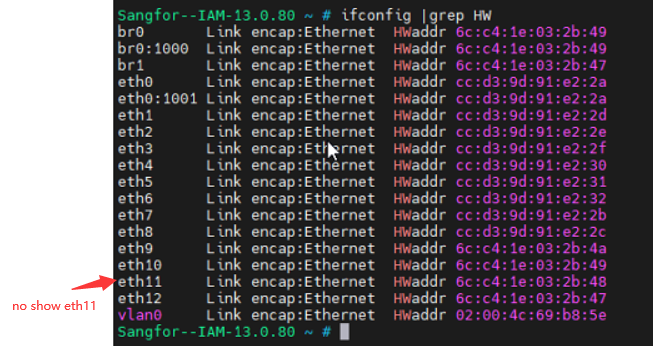

-ifconfig |grep HW did not show the info about issue interface "eth11" it means the eth11 is down status.

file

Solution

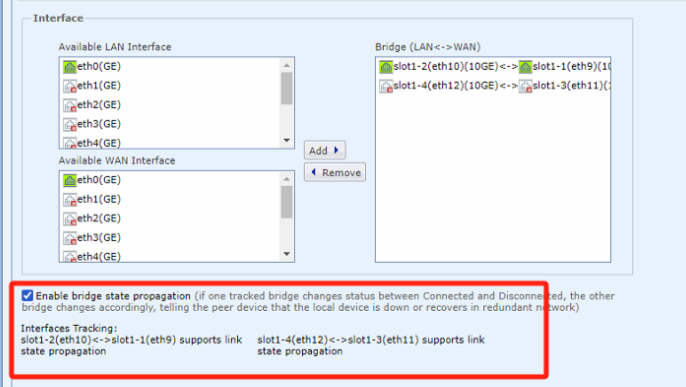

Disable the "Enable bridge state propagation" option, after that the light should showing.

file

Root Cause
After enabled the "Enable bridge state propagation" option, the single eth are not able to boot up, the sequence should be connected the cable first only enable that option.
