Issue Description

The NGAF enabled and configured the SNMP setting but not working.

Handling Process

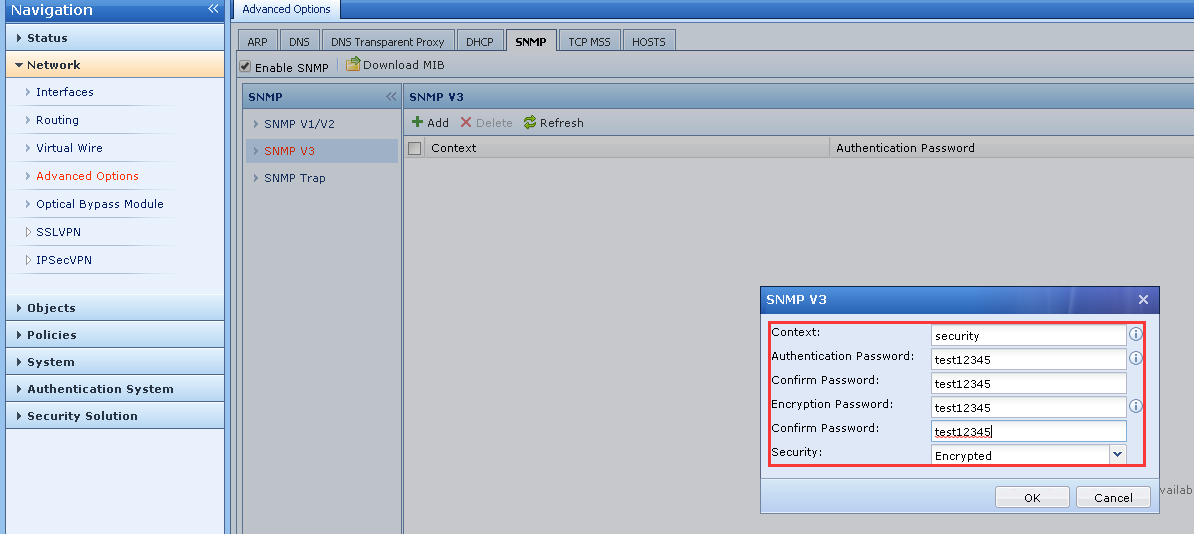

1. Check the parameter set in the NGAF is match with the monitoring software.

2. Open bypass in NGAF found out the SNMP protocol being blocked in NGAF.
3. Check the interface do not enable the SNMP.


Root Cause

The interface do not enable the SNMP option.

Solution

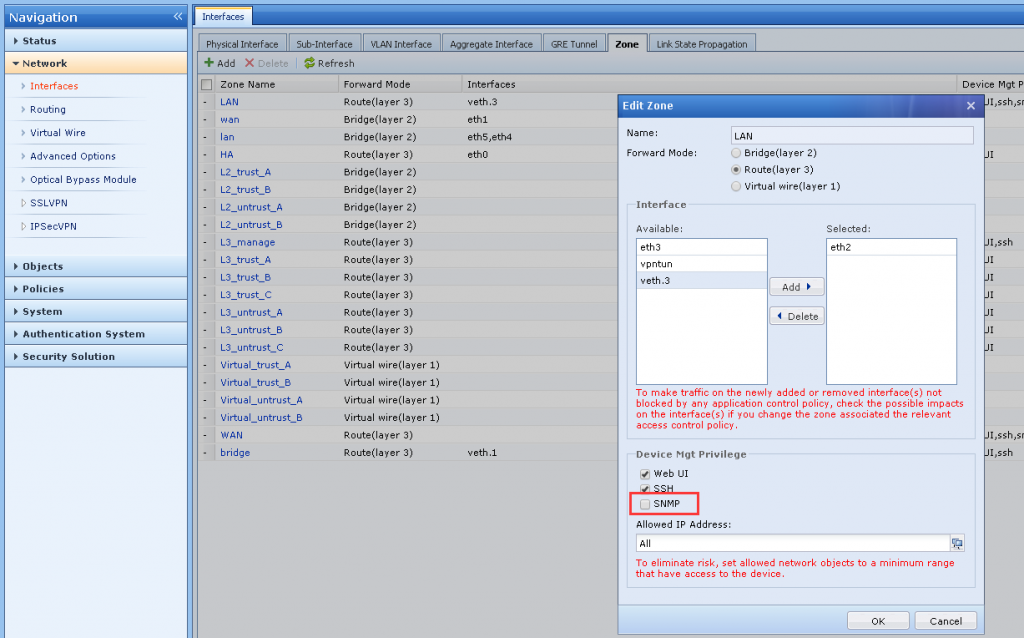

Enable the SNMP option in the zone setting.
