【NGAF】Check associated SSLVPN resources type and IP

Posted
Updated
Byyuhong.leow@sangfor.com
Views4

Issue Description

Check the associated resources when login to SSLVPN

Handling Process

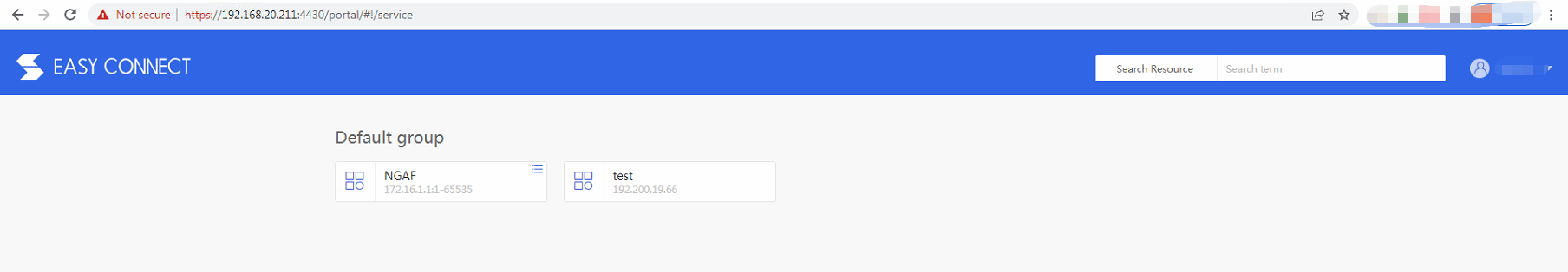

  1. Login SSLVPN with browser
    file

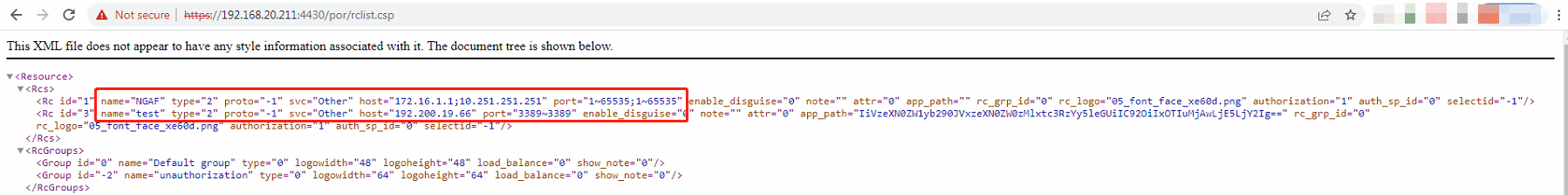

  2. Modify the URL to https://VPN_IP/por/rclist.csp
  3. It will show the associated resources information
    file
  4. Parameter of resource type: 0 is web app, 1 is TCP app, 2 is L3VPN app
  5. Proto is the protocol used of L3VPN and its parameter: 0 is TCP, 1 is UDP, 2 is ICMP, -1 is ALL

Solution

Providing a way to check the associated resources
