【NGAF】NGAF SNMP tool configuration

Posted
Updated
Byalvin.chia@sangfor.com
Views52

Issue Description

Monitoring NGAF status by SNMP tool

Handling Process

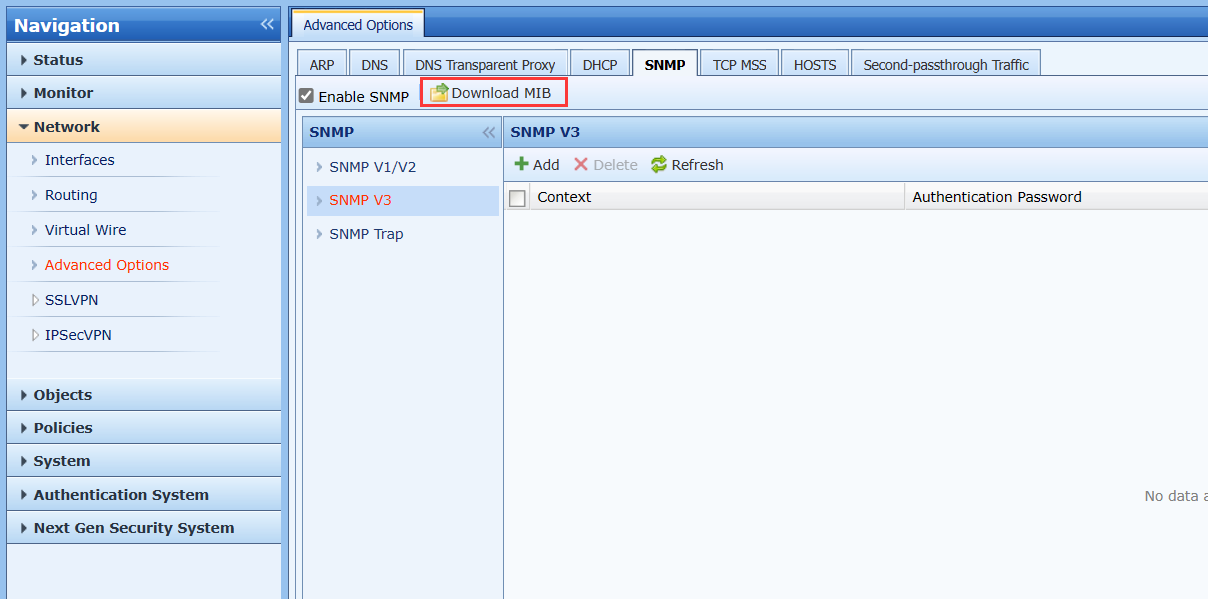

  1. Download the MIB file from NGAF(only available at version 8.0.26 and below, if you are using version 8.0.35 and above, you may contact us to get the MIB file).
    file

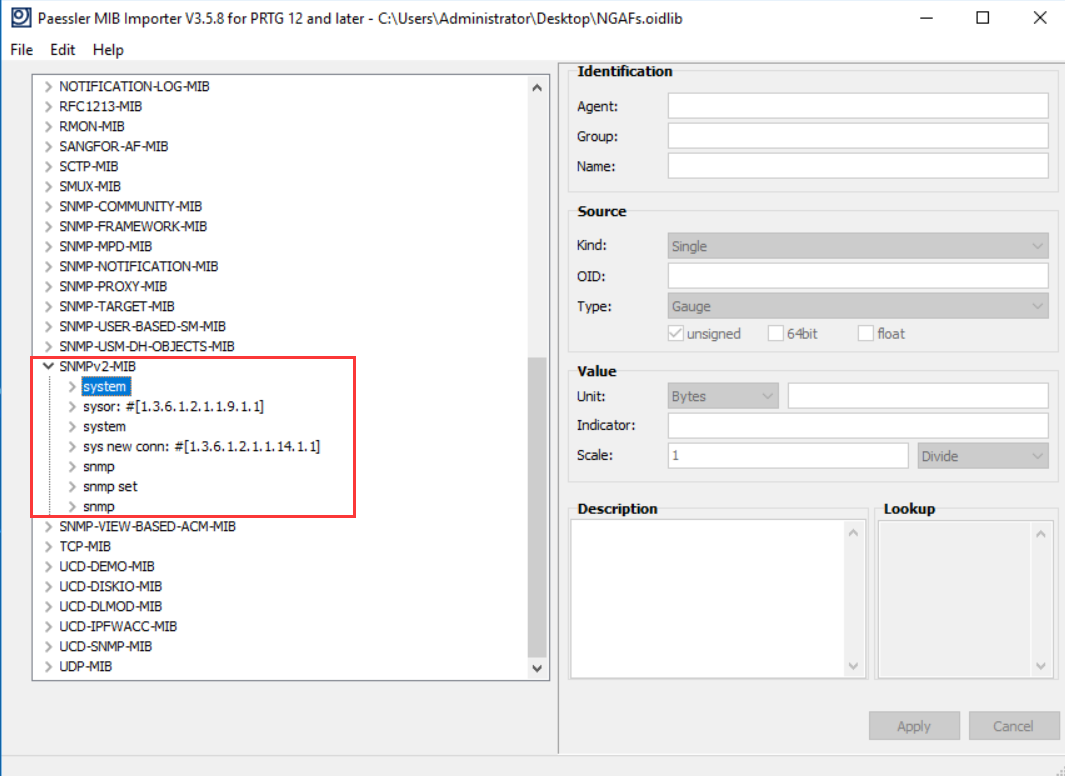

  2. Import the MIB file into MIB browser and select SNMPv2 category to export it into OID.
    file

  3. Import the OID into the SNMP tool accordingly.

  4. Setup the monitoring based on the SNMP in-used accordingly.

Solution

Suggest to use NGAF’s MIB for monitoring as third party OID may have compatibility issue which retrieving wrong value from NGAF.
