【WANO】Fail To Build Up Reverse Acceleration

Issue Description

WANO built-up Acceleration connection, but unable to build up Reverse Acceleration.
Below is the sample screenshot of fail to build up Reverse Acceleration,
file
The Reverse User shows empty, which means fail to build up Reverse Acceleration.

Handling Process

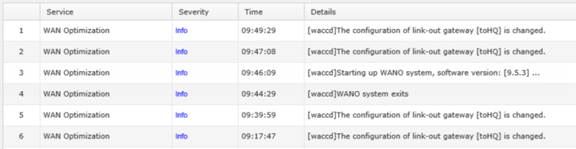

  1. Check from the System Log from both side, nothing major or relevant logs show
    file

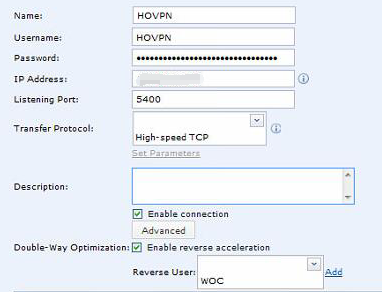

  2. Ensure the [Reverse Acceleration] is enabled
    file

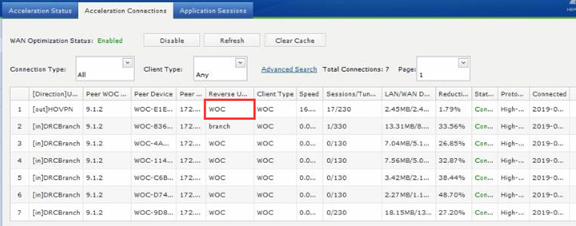

  3. Try to build an Acceleration Tunnel from Server side connect to Client side to ensure the traffic flow is normal between both side, but both side shows fail to build up Reverse Acceleration
    file

Root Cause

From the Server side found out that there is a Acceleration policy that connect back to the Client side.
In this case, supposed that the connection is build from Client side to Server side, but from the Server side found out there is a policy that connect back to the Client side.
Although it is disabled, but it will also cause this issue.
file

Solution

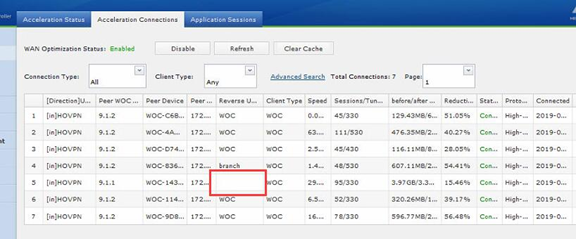

Remove the policy from the Server side, the Reverse Acceleration will be built-up automatically
file
